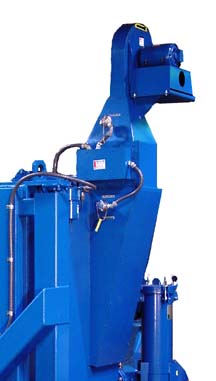

The optional Hot-Air Blow-Off system flash dries parts by high-velocity, direct blasts of air that blow most of the water off parts. Heat evaporates any remaining water.
The HABO system activates after wash and rinse cycles have completed: The fan turns on while the turntable continues to rotate. Air is inducted from outside the washer cabinet by the fan and blown through the electric heating coils. Then, the heated air is accelerated to high velocity as it travels through the plenum and out the nozzles to blow water off parts on the turntable.
Heating units are sized to increase air temperature a minimum of 110 degrees F above ambient air temperature.
The HABO system removes steam using a variable-speed DC-drive centrifugal fan, which replaces the standard Automatic Steam Exhaust unit.
|
 |
